How Non-disruptive Cable Repair Work

Repair, rebuild, and fire protection of a severely damaged cable.

Initial contact is normally followed by product presentations and site survey. FS’s experienced surveyors will identify your cable problems and produce a detailed survey report where we document current and likely future conditions of your cables, propose the appropriate repair solutions, and indicate a budget.

Turnkey applications are delivered by our own experienced technicians using only FS Class Approved products and the work process concludes with a full documentation package including Completion Report and Warranty Letter, supported with relevant Class Approvals and Testing.

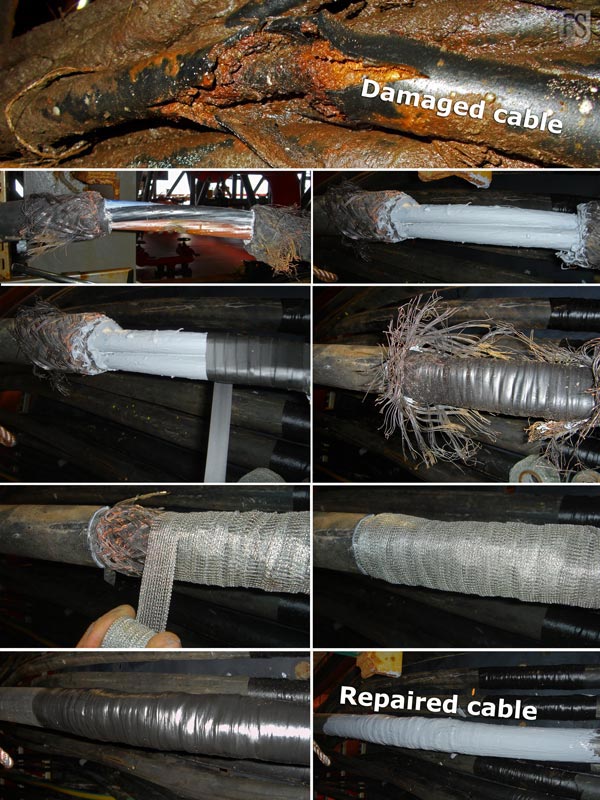

Cables with cracks in the outer sheath will be individually wrapped with FS repair tape before being sprayed with FS coating to create a new and improved cable sheath.

When water or chemical ingress has caused the cable braiding to corrode, we will remove the damaged section and replace the braiding with FS metal shielding tape before rebuilding a new outer sheath with FS electrical repair tape. FS coating is then applied to make it a class approved permanent repair.

Our repair methodology depends on cable type and technical specifications. But in general, the regulations for repairing cables say “to the same standard or better” than the original.

BROCHURES:
Cable repair and life extension for onshore industries.
Cable repair and life extension for the oil & gas industry.
